Star Trek TOS Phaser

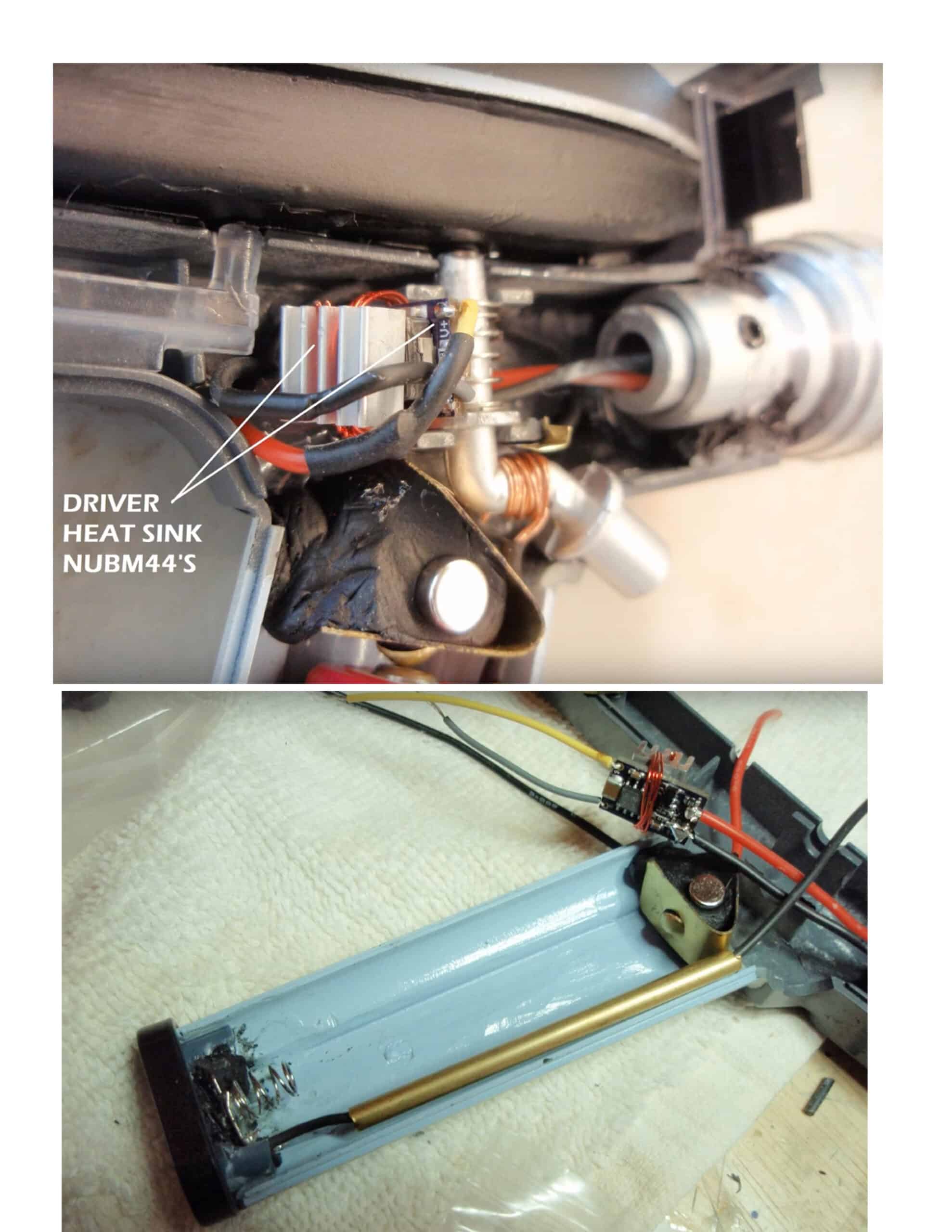

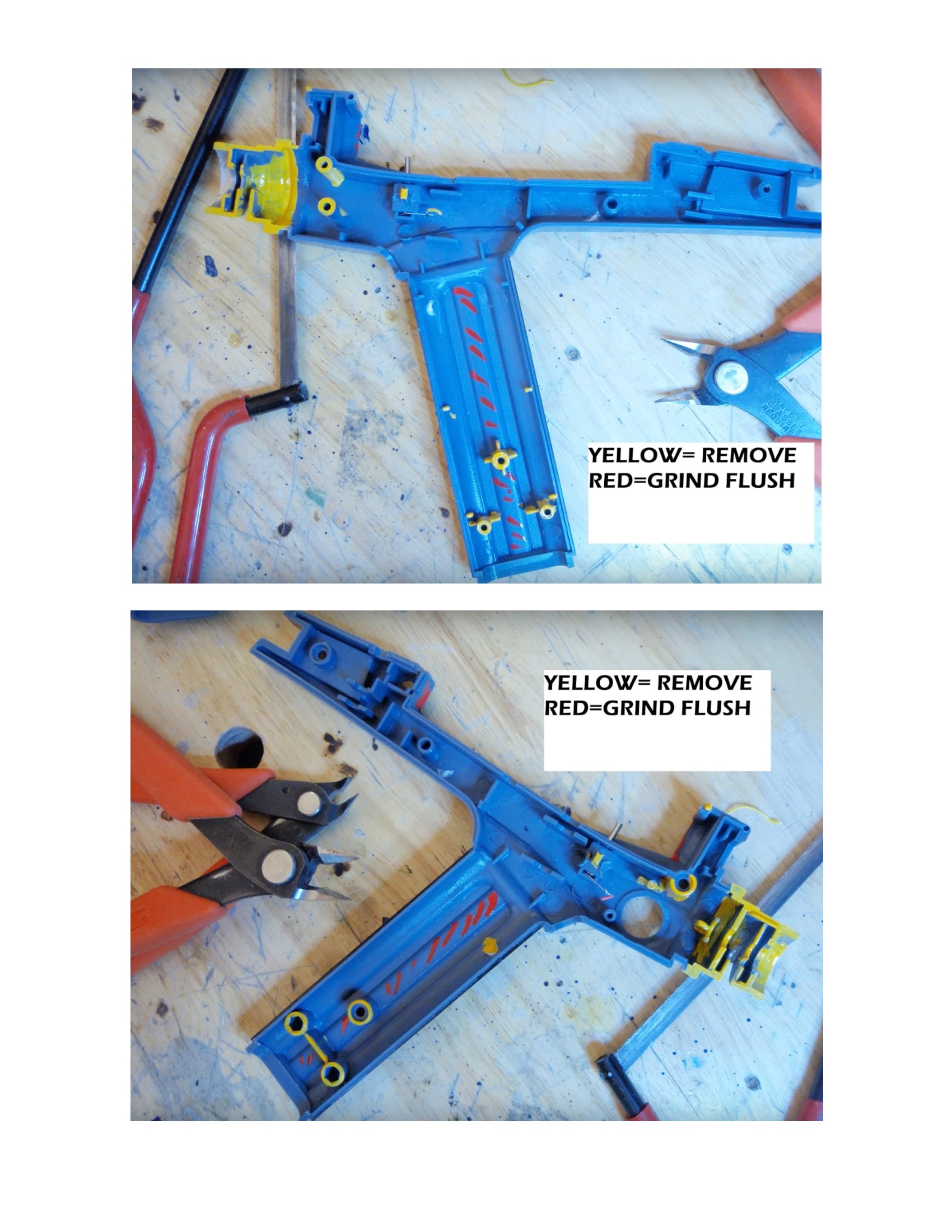

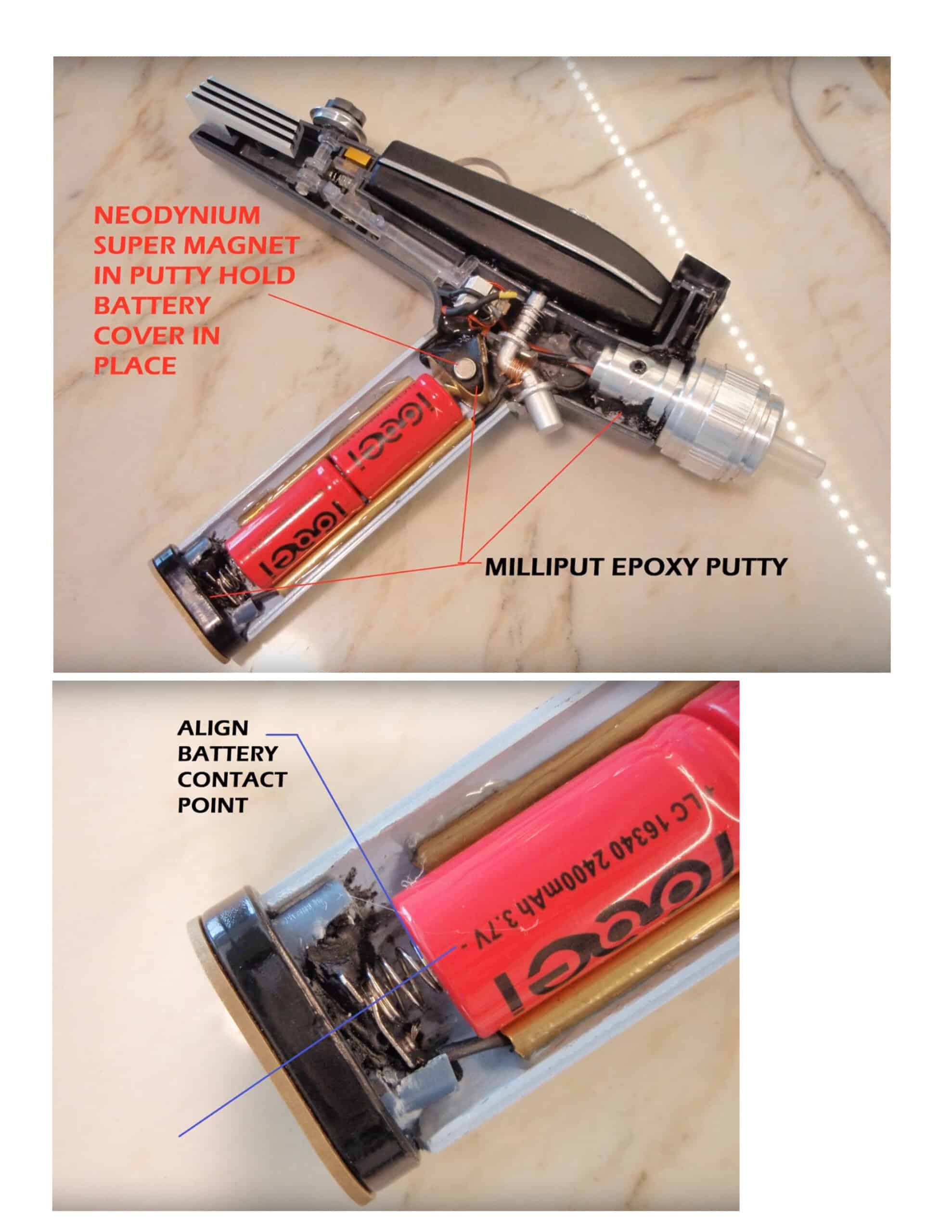

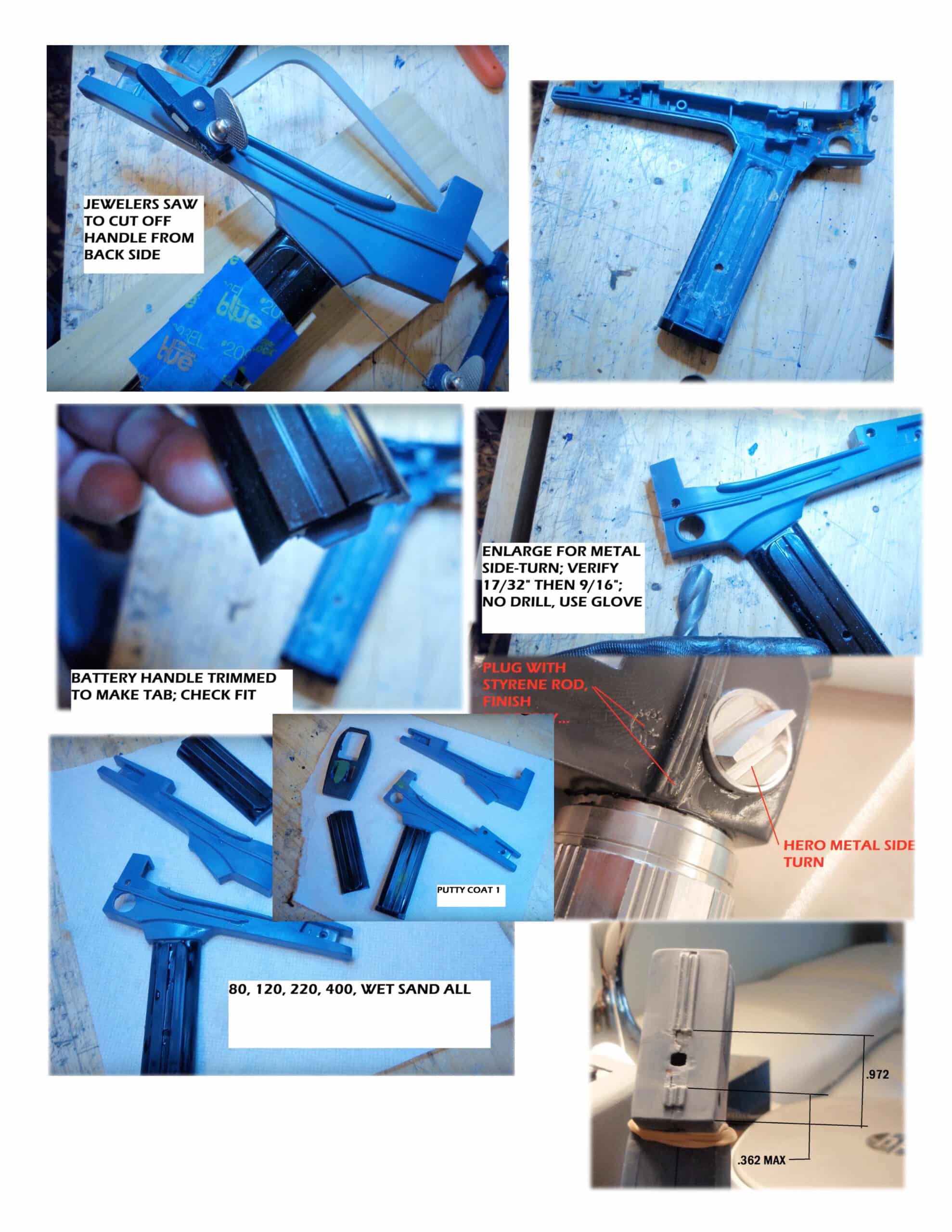

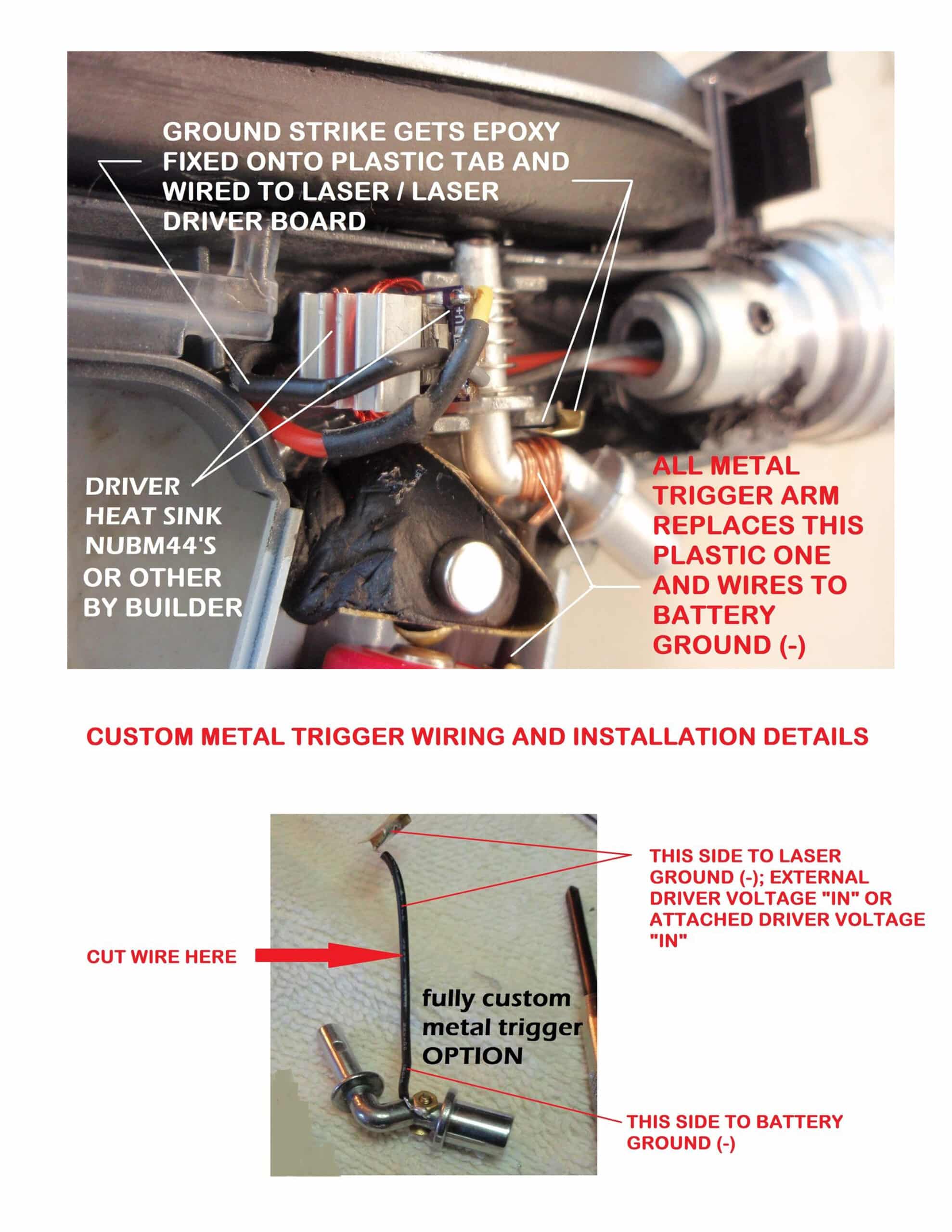

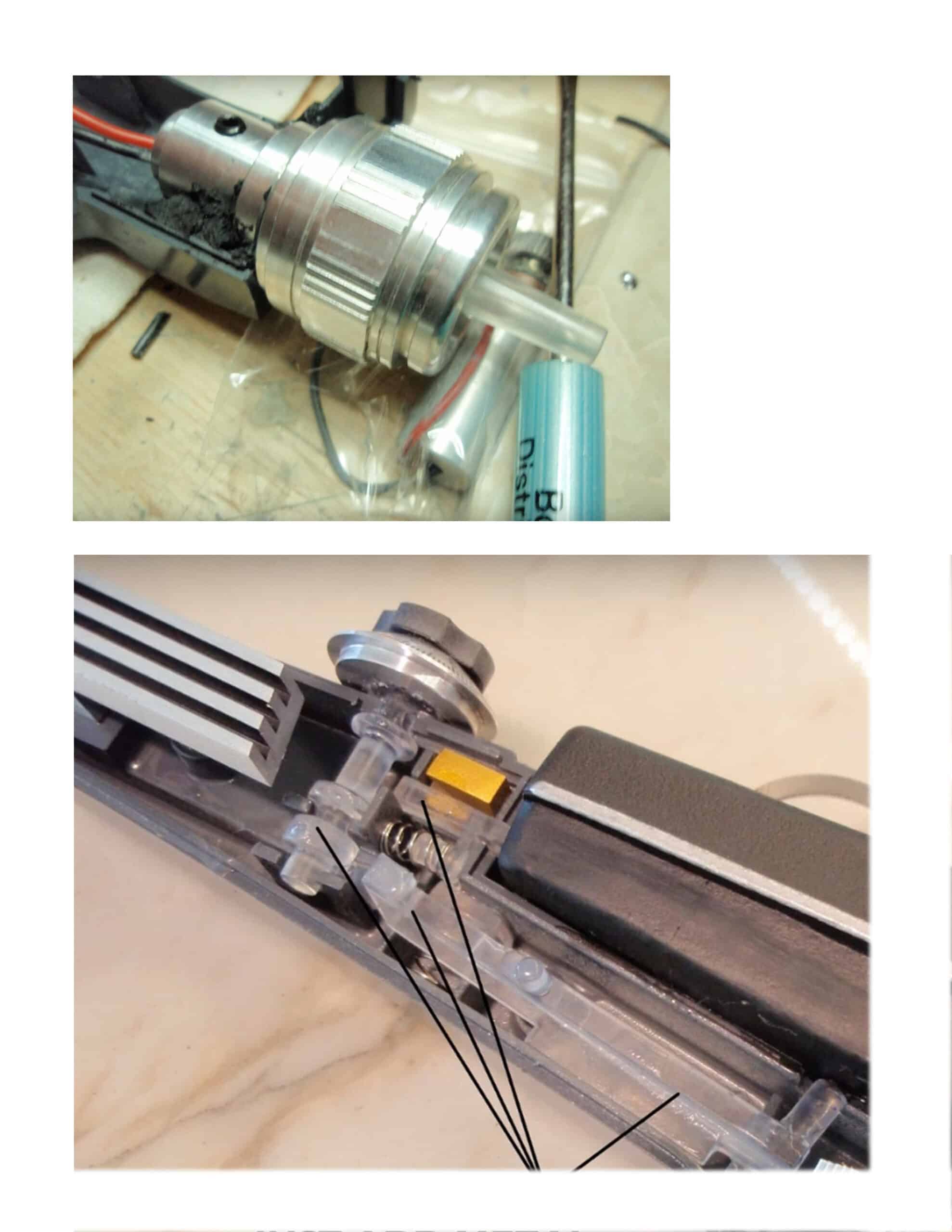

This was one of my most challenging and rewarding builds. I love Star Trek and this is just an amazing prop to work on if you love Star Trek too. It’s tricky in all aspects, disassembly, cleaning, wiring and assembly. But, wow, when its down it is such an amazing piece.

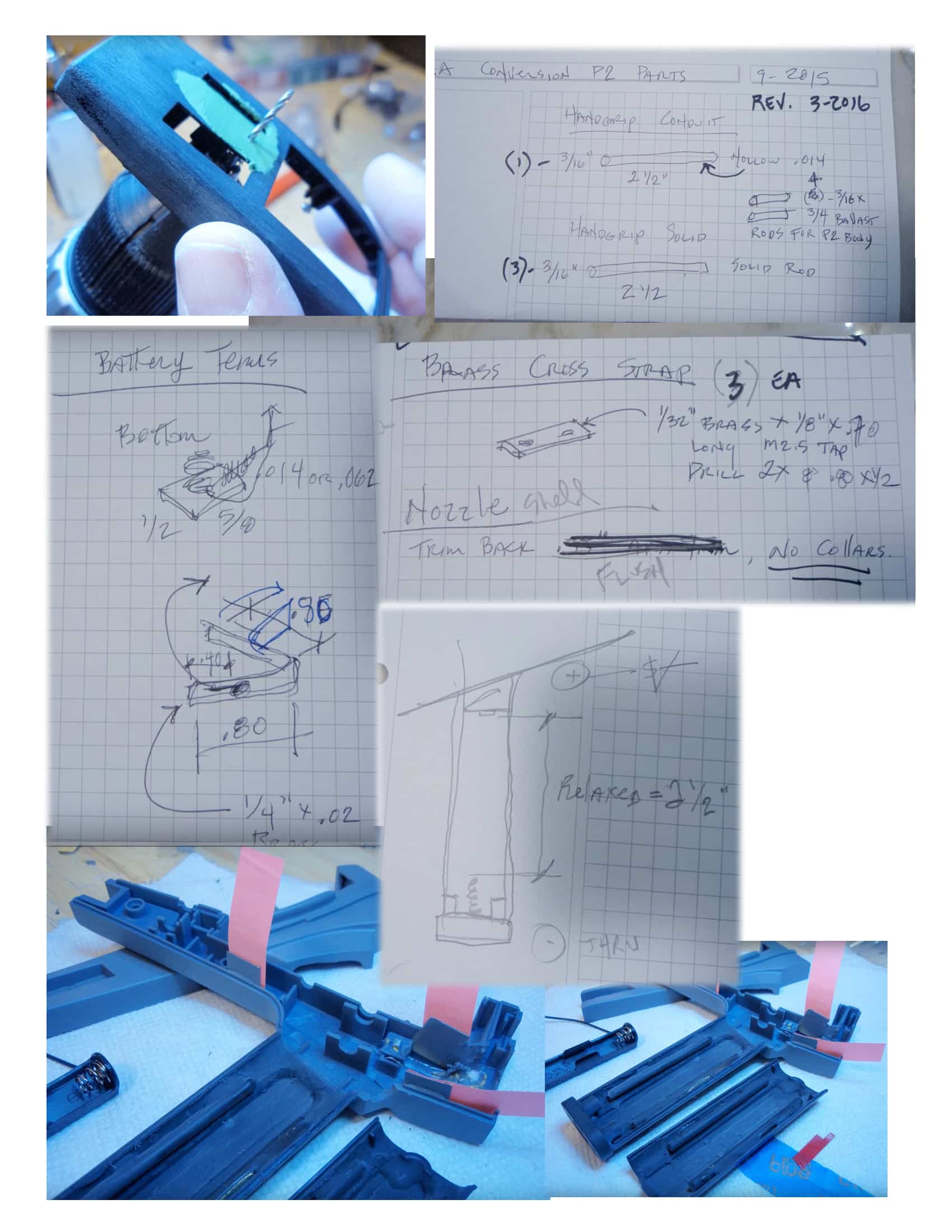

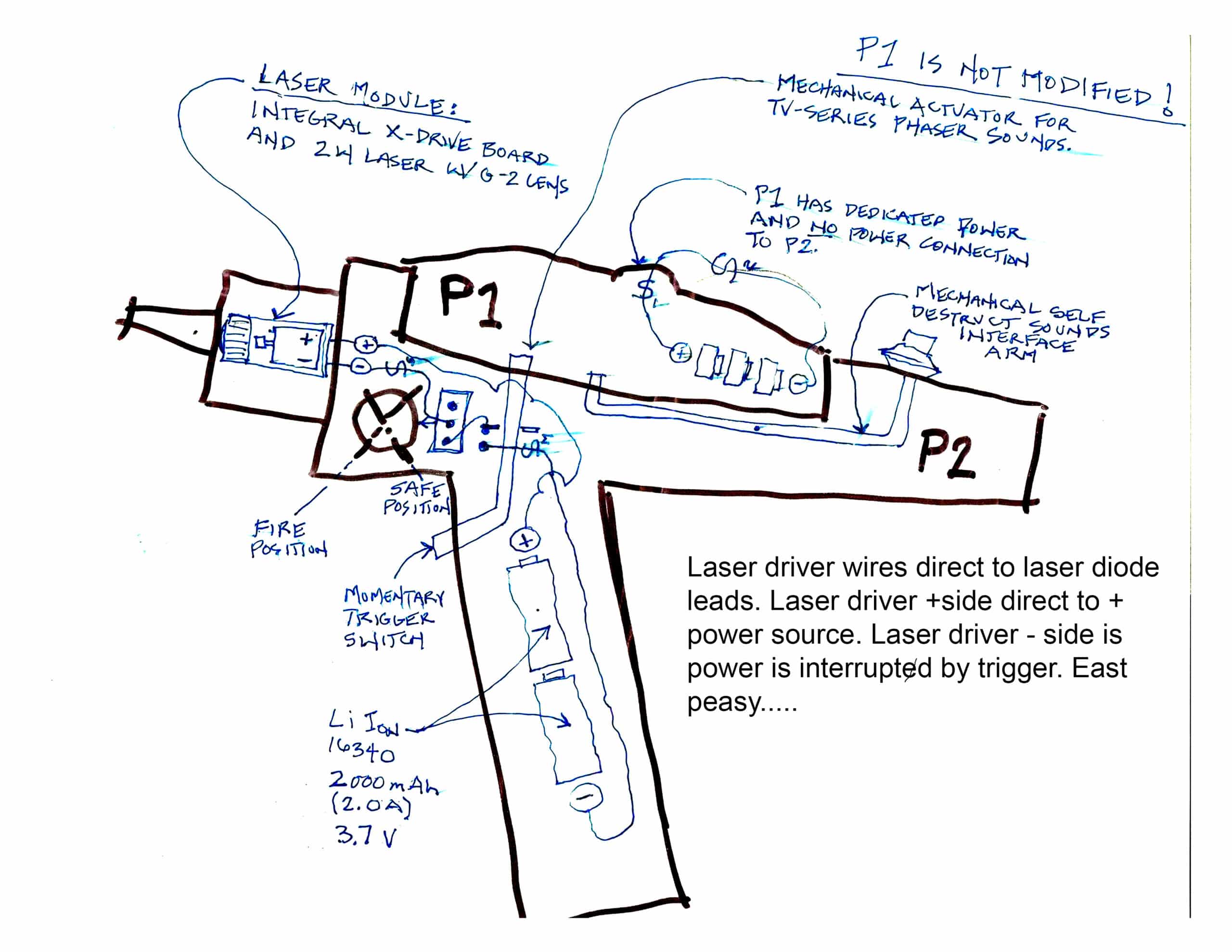

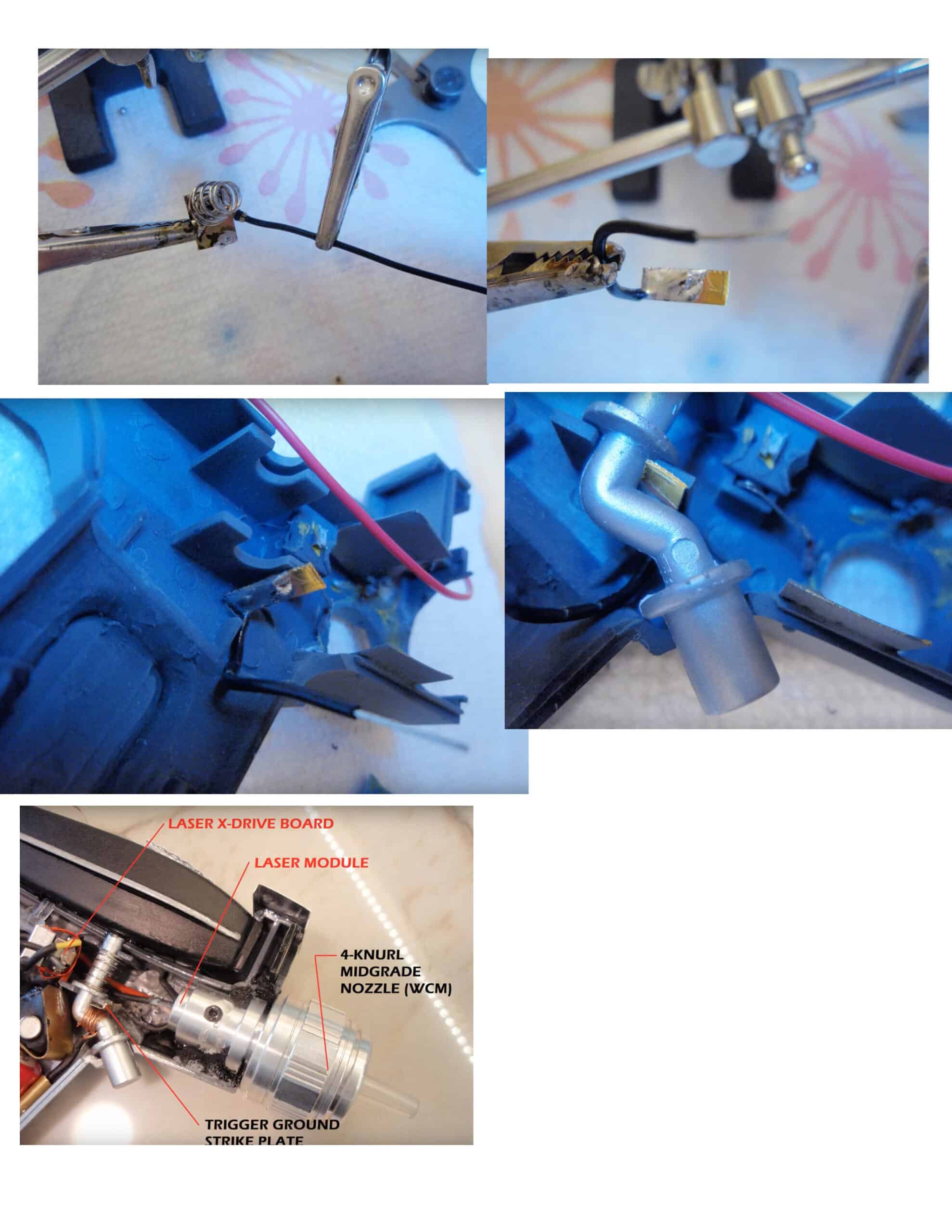

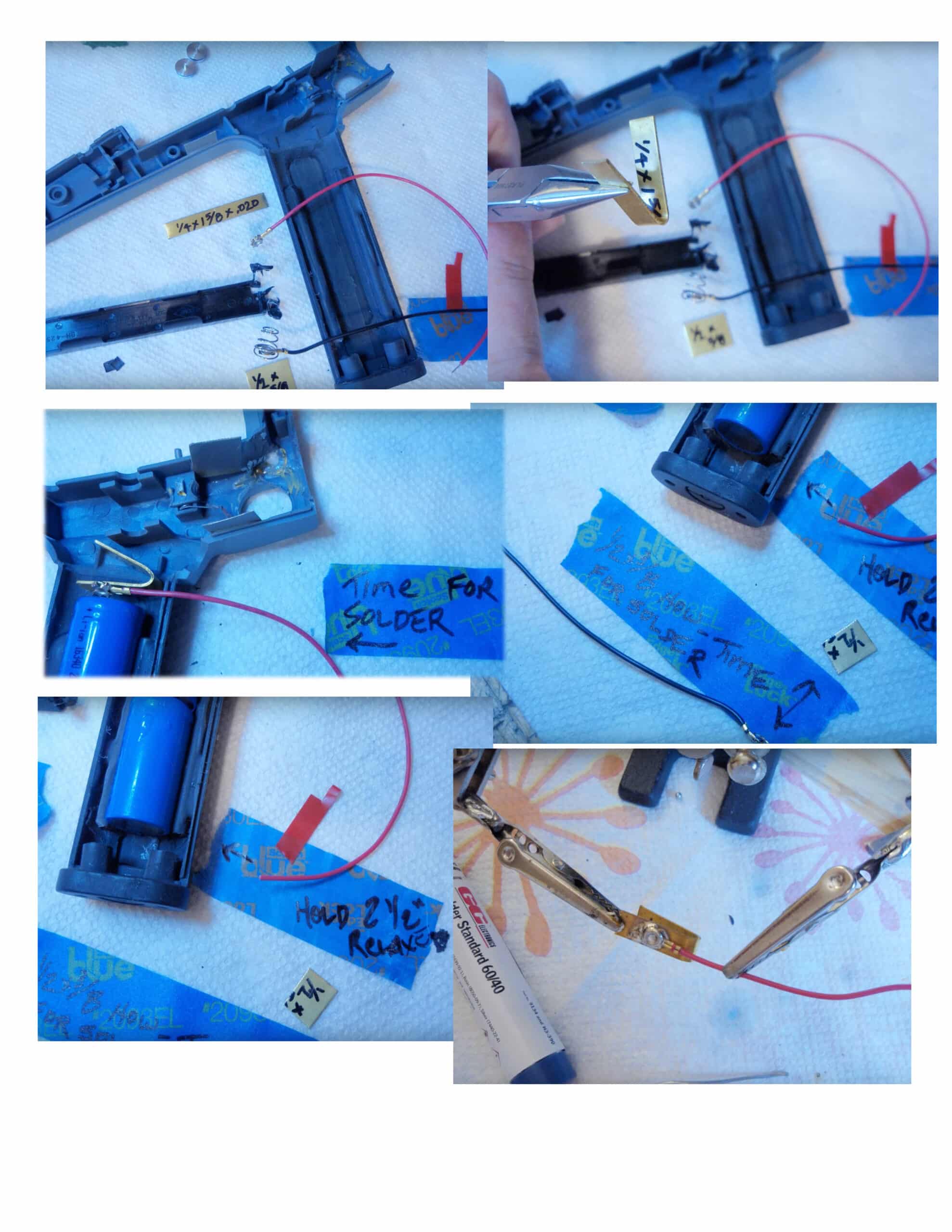

I had help from the amazing maker, Jon-Paul, who creates these amazing parts. His video was instrumental and to help, I makes a lot of screen shots and notes from his video. Jon-Paul was also kind enough to to provide me a wiring diagram. I hope his video, mine and these images help you in your build.

I have also included a list of products I used from Jon-Paul and ones I purchased on amazon and ebay. Good Luck!!
